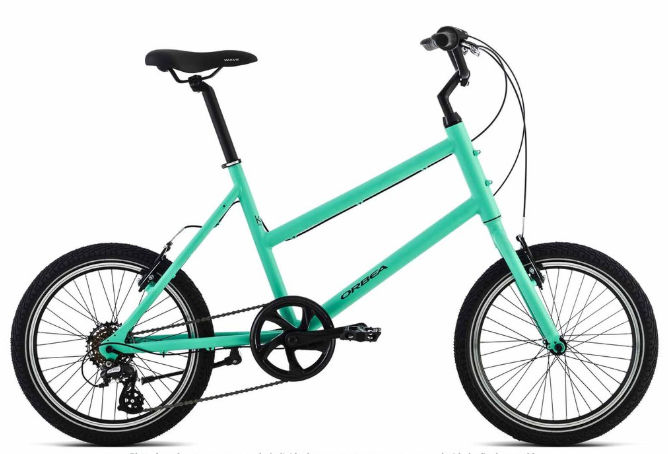

2018 Orbea Katu geometry
Full frame geometry for the 2018 Orbea Katu, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| U | 523 | 402 | 71.3 | 68.7 | 250 | 576 | 458 | 650 | 26 | 437 | 1082 |
All measurements in millimetres unless marked (°) for angles.
