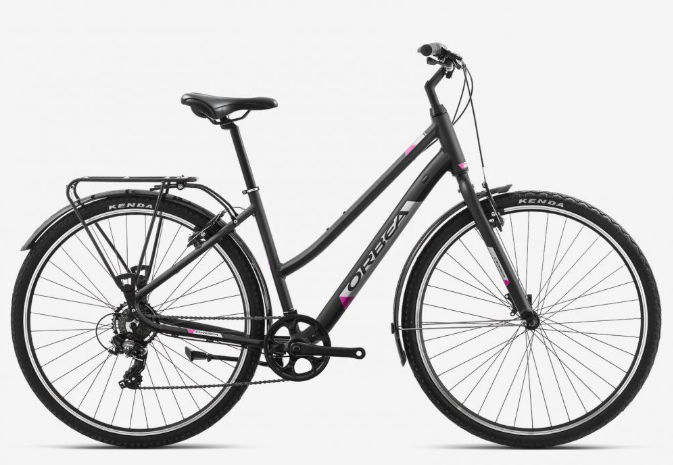

2018 Orbea Comfort Mid Bar geometry
Full frame geometry for the 2018 Orbea Comfort Mid Bar, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 612 | 360 | 74 | 70.5 | 125 | 535 | 402 | 65 | 450 | 1055 |
| M | 624 | 390 | 74 | 70.5 | 130 | 569 | 430 | 65 | 450 | 1071 |
| L | 633 | 403 | 74 | 70.5 | 140 | 585 | 465 | 65 | 450 | 1087 |
| XL | 652 | 418 | 74 | 70.5 | 150 | 605 | 500 | 65 | 450 | 1109 |
All measurements in millimetres unless marked (°) for angles.
