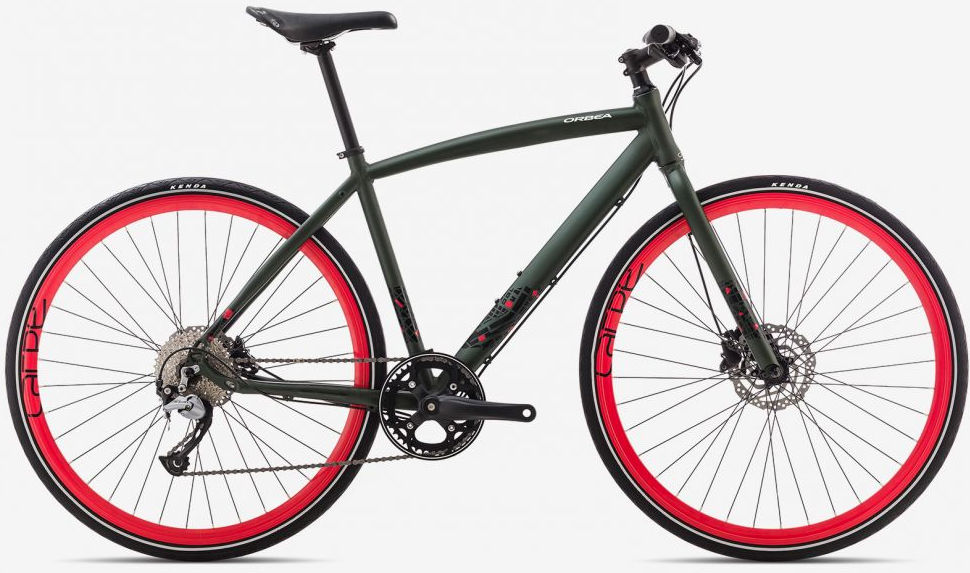

2016 Orbea Carpe geometry
Full frame geometry for the 2016 Orbea Carpe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 518 | 386 | 74 | 70 | 105 | 535 | 430 | 737 | 70 | 598 | 435 | 1023 |
| M | 545 | 394 | 74 | 71 | 130 | 550 | 480 | 775 | 70 | 606 | 435 | 1031 |
| L | 566 | 422 | 73.5 | 71.5 | 150 | 590 | 520 | 805 | 70 | 637 | 435 | 1062 |
| XL | 596 | 428 | 73 | 72 | 180 | 610 | 560 | 839 | 70 | 646 | 435 | 1072 |
All measurements in millimetres unless marked (°) for angles.
