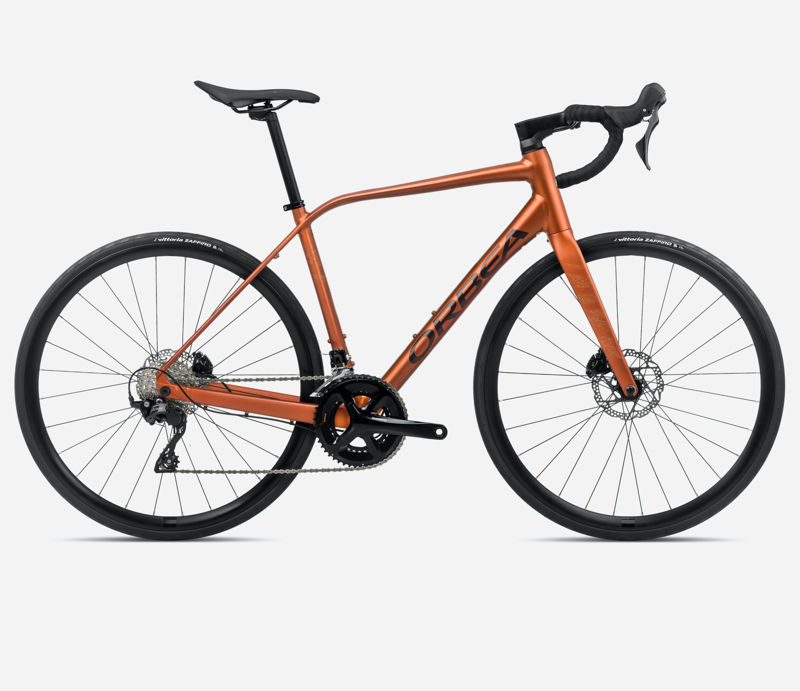

2023 Orbea Avant geometry
Full frame geometry for the 2023 Orbea Avant, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 525 | 365 | 74.5 | 71 | 122 | 511 | 420 | 713 | 75 | 425 | 989 | 65 |
| 49 | 545 | 370 | 74 | 71.5 | 141 | 526 | 445 | 738 | 75 | 425 | 996 | 62.5 |
| 51 | 565 | 375 | 73.8 | 71.9 | 161 | 539 | 470 | 761 | 75 | 425 | 1004 | 58.1 |
| 53 | 585 | 380 | 73.5 | 72.4 | 180 | 553 | 495 | 790 | 73 | 425 | 1006 | 58.8 |
| 55 | 605 | 390 | 73.5 | 72.6 | 201 | 569 | 520 | 809 | 73 | 425 | 1020 | 58 |
| 57 | 625 | 395 | 73 | 72.8 | 221 | 586 | 545 | 833 | 73 | 425 | 1029 | 56.5 |
| 60 | 645 | 400 | 73 | 73 | 241 | 597 | 575 | 852 | 73 | 425 | 1038 | 56.5 |
All measurements in millimetres unless marked (°) for angles.
