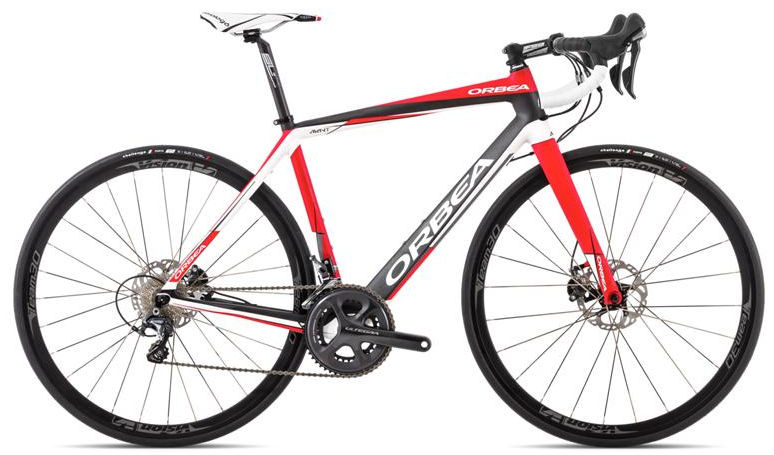

2014 Orbea Avant OMP Disc geometry
Full frame geometry for the 2014 Orbea Avant OMP Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 517 | 363 | 73.5 | 71.2 | 113 | 516 | 410 | 714 | 73 | 567 | 414 | 978 | 53 | 58 |
| 49 | 536 | 367 | 73.5 | 71.4 | 132 | 526 | 440 | 729 | 73 | 576 | 414 | 987 | 53 | 56 |
| 51 | 555 | 371 | 73.5 | 71.8 | 150 | 535 | 470 | 763 | 73 | 583 | 414 | 993 | 53 | 54 |
| 53 | 573 | 378 | 73.5 | 72 | 165 | 548 | 490 | 781 | 73 | 584 | 414 | 994 | 43 | 63 |
| 55 | 596 | 383 | 73.2 | 72.5 | 188 | 563 | 510 | 796 | 73 | 591 | 418 | 1005 | 43 | 60 |
| 57 | 615 | 392 | 73 | 73 | 205 | 580 | 530 | 813 | 73 | 600 | 418 | 1014 | 43 | 57 |
| 60 | 637 | 400 | 73 | 73 | 226 | 595 | 560 | 838 | 73 | 615 | 418 | 1024 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
