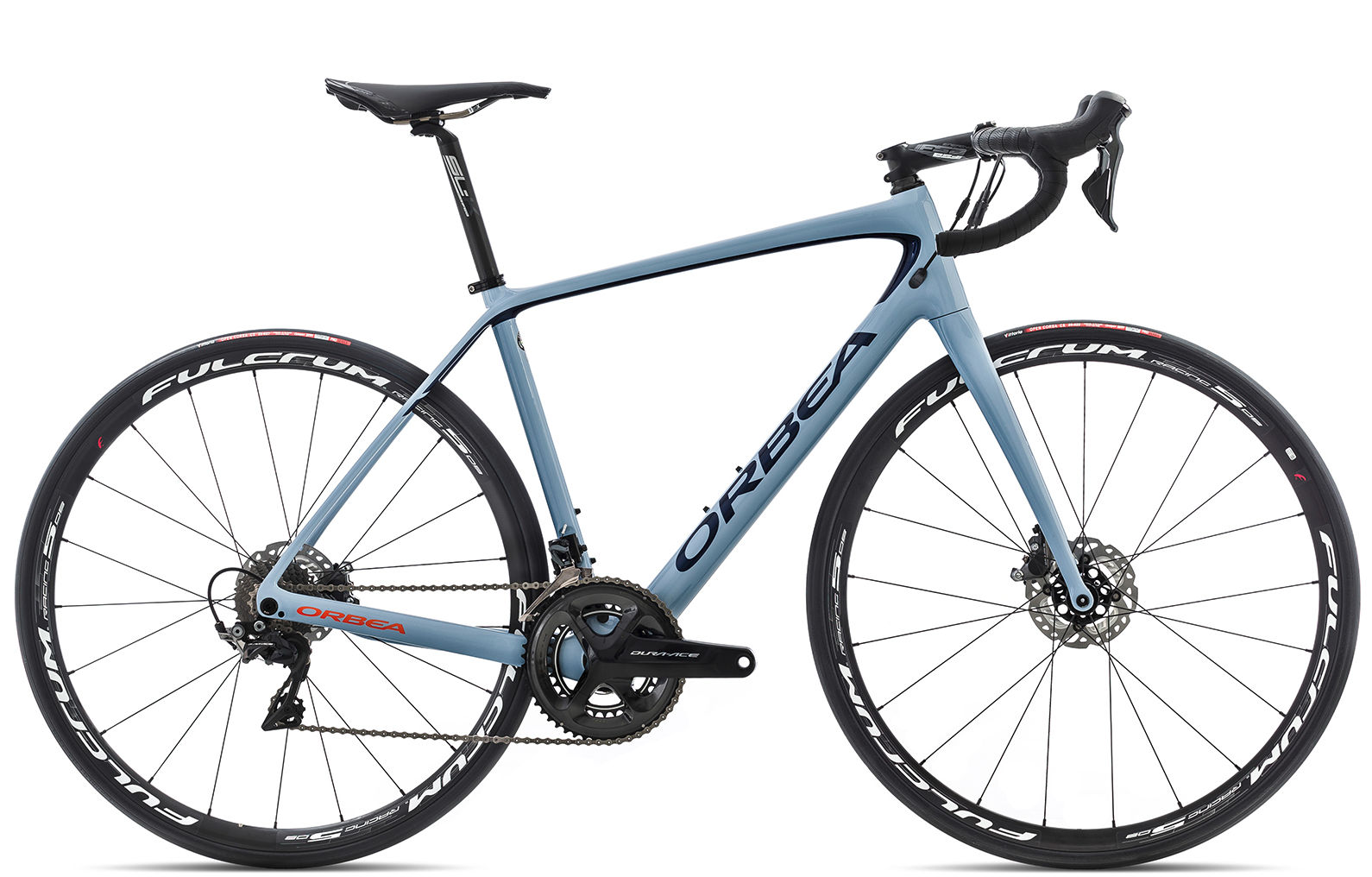

2016 Orbea Avant OMP Disc MKII geometry
Full frame geometry for the 2016 Orbea Avant OMP Disc MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 520 | 364 | 74.5 | 71 | 108 | 508 | 410 | 728 | 75 | 575 | 415 | 978 | 50 | 63 |
| 49 | 535 | 368 | 74 | 71.5 | 121 | 520 | 440 | 750 | 75 | 576 | 415 | 979 | 50 | 60 |
| 51 | 553 | 372 | 73.8 | 71.9 | 138 | 533 | 470 | 772 | 75 | 586 | 415 | 989 | 50 | 57 |
| 53 | 572 | 378 | 73.5 | 72.4 | 158 | 547 | 490 | 793 | 73 | 588 | 415 | 992 | 45 | 59 |
| 55 | 595 | 383 | 73.5 | 72.6 | 181 | 559 | 510 | 814 | 73 | 598 | 415 | 1002 | 45 | 58 |
| 57 | 614 | 390 | 73 | 72.8 | 200 | 578 | 530 | 832 | 73 | 609 | 415 | 1013 | 45 | 57 |
| 60 | 635 | 398 | 73 | 73 | 221 | 592 | 560 | 857 | 73 | 621 | 415 | 1025 | 45 | 56 |
All measurements in millimetres unless marked (°) for angles.
