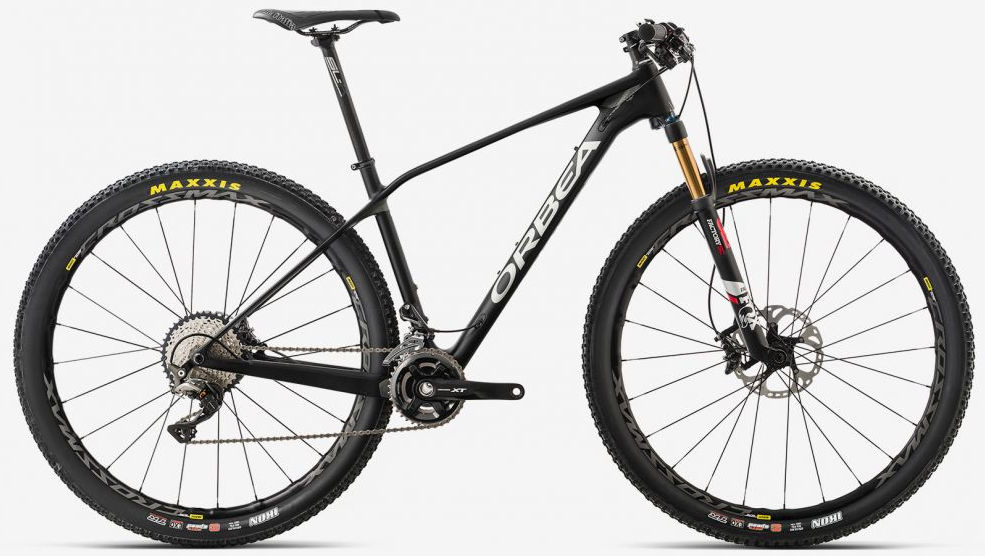

2016 Orbea Alma OMR geometry
Full frame geometry for the 2016 Orbea Alma OMR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (27.5) | 573 | 380 | 73.5 | 69.3 | 95 | 550 | 400 | 716 | 43 | 629 | 420 | 1045 | 44 |
| M (27.5) | 583 | 409 | 73.5 | 69.5 | 105 | 582 | 445 | 735 | 43 | 662 | 420 | 1078 | 44 |
| M (29) | 602 | 409 | 73.5 | 69.5 | 95 | 588 | 445 | 735 | 61 | 669 | 430 | 1092 | 44 |
| L (29) | 611 | 435 | 73.5 | 69.5 | 105 | 616 | 483 | 741 | 61 | 698 | 430 | 1121 | 44 |
| XL (29) | 625 | 455 | 73.5 | 69.5 | 120 | 640 | 533 | 802 | 61 | 723 | 430 | 1146 | 44 |
All measurements in millimetres unless marked (°) for angles.
