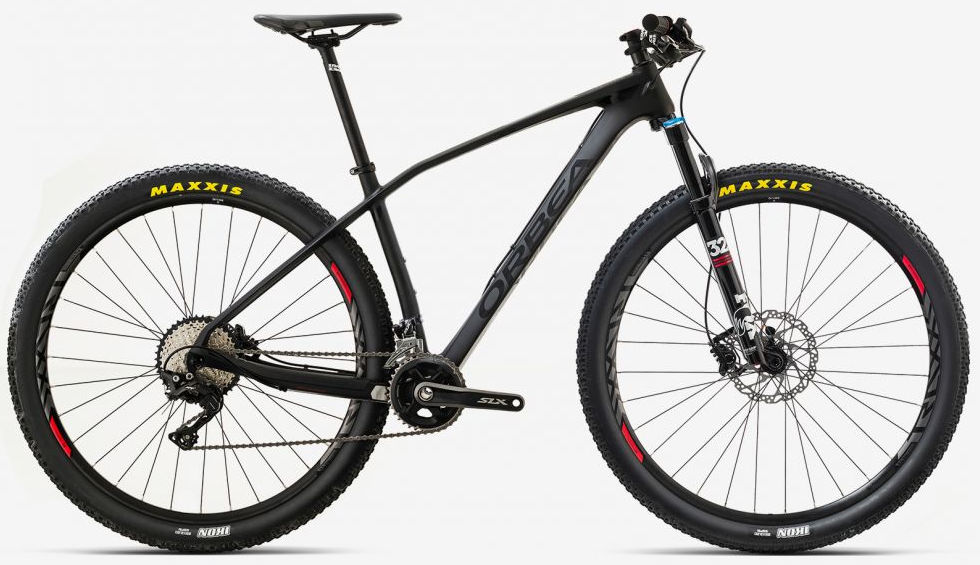

2016 Orbea Alma OMP geometry
Full frame geometry for the 2016 Orbea Alma OMP, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (27.5) | 577 | 380 | 73.5 | 70.5 | 95 | 552 | 400 | 720 | 42 | 619 | 423 | 1038 |
| M (27.5) | 587 | 409 | 73.5 | 70.5 | 105 | 583 | 445 | 747 | 42 | 650 | 423 | 1070 |
| L (27.5) | 596 | 429 | 73.2 | 70.5 | 115 | 606 | 483 | 775 | 42 | 673 | 423 | 1093 |
| M (29) | 611 | 409 | 73.5 | 70.5 | 100 | 591 | 445 | 747 | 60 | 655 | 436 | 1084 |
| L (29) | 621 | 423 | 73.5 | 70.5 | 110 | 613 | 483 | 777 | 60 | 677 | 436 | 1106 |
| XL (29) | 635 | 449 | 73.5 | 70.5 | 125 | 638 | 533 | 820 | 60 | 703 | 436 | 1132 |
All measurements in millimetres unless marked (°) for angles.
