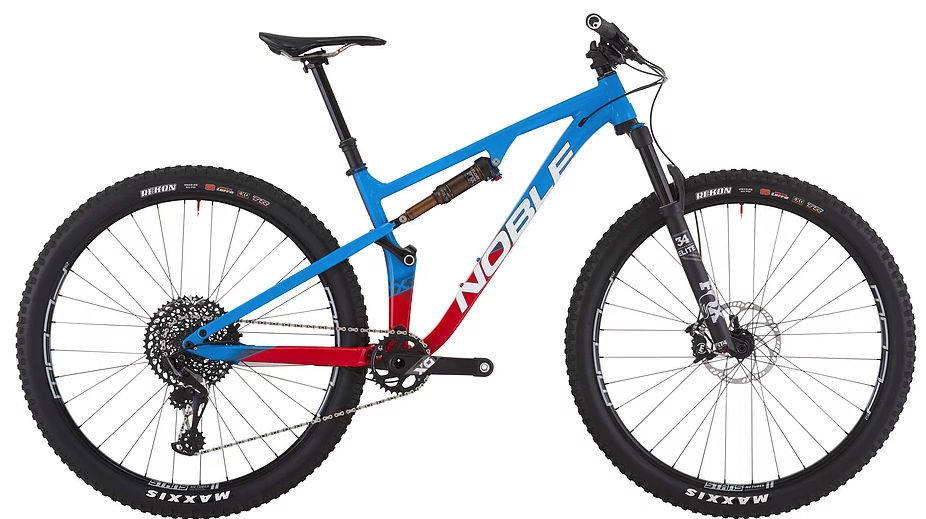

2019 Noble TX329 geometry
Full frame geometry for the 2019 Noble TX329, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 596 | 445 | 75 | 67.5 | 100 | 605 | 420 | 814 | 35 | 736 | 432 | 1166 | 51 | 97 |
| S | 596 | 420 | 75 | 67.5 | 100 | 580 | 390 | 799 | 35 | 711 | 432 | 1141 | 51 | 97 |
| L | 605 | 470 | 75 | 67.5 | 110 | 632 | 460 | 840 | 35 | 765 | 432 | 1195 | 51 | 97 |
| XL | 614 | 495 | 75 | 67.5 | 120 | 660 | 500 | 865 | 35 | 794 | 432 | 1223 | 51 | 97 |
All measurements in millimetres unless marked (°) for angles.
