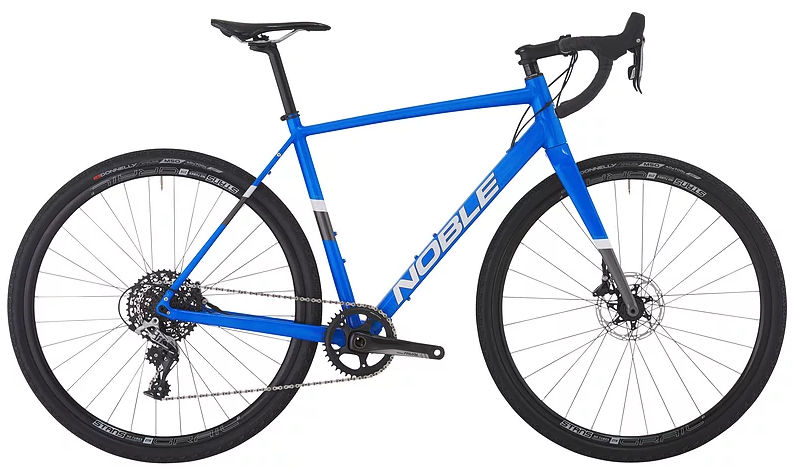

2019 Noble GX3 geometry
Full frame geometry for the 2019 Noble GX3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 536 | 367 | 75 | 70 | 100 | 510 | 450 | 752 | 82 | 590 | 440 | 1016 | 52 | 72 |
| 50 | 542 | 370 | 74.5 | 70.5 | 110 | 520 | 470 | 771 | 78 | 592 | 440 | 1020 | 52 | 69 |
| 52 | 560 | 374 | 74 | 71.5 | 125 | 535 | 490 | 791 | 78 | 593 | 440 | 1021 | 52 | 63 |
| 54 | 576 | 379 | 73 | 71.5 | 145 | 555 | 510 | 814 | 75 | 604 | 440 | 1033 | 52 | 63 |
| 56 | 591 | 389 | 73 | 71.5 | 160 | 570 | 530 | 832 | 75 | 619 | 440 | 1048 | 52 | 63 |
| 58 | 612 | 392 | 72.5 | 71.5 | 185 | 585 | 550 | 856 | 72 | 630 | 440 | 1059 | 52 | 63 |
| 60 | 626 | 403 | 72.5 | 71.5 | 200 | 600 | 570 | 873 | 72 | 645 | 440 | 1075 | 52 | 63 |
All measurements in millimetres unless marked (°) for angles.
