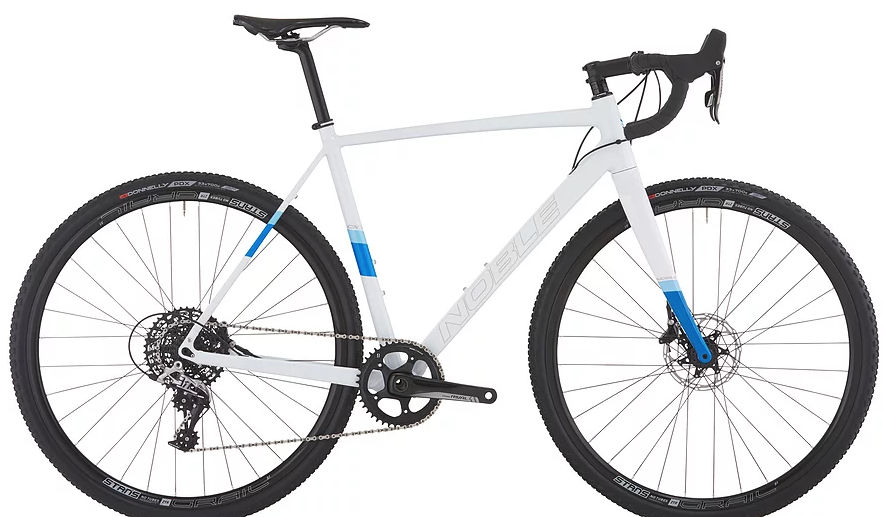

2019 Noble CX3 geometry
Full frame geometry for the 2019 Noble CX3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 527 | 379 | 75 | 70 | 100 | 510 | 460 | 766 | 70 | 597 | 425 | 1012 | 48 | 74 |
| 50 | 527 | 379 | 74.5 | 71 | 105 | 525 | 480 | 779 | 68 | 590 | 425 | 1006 | 48 | 68 |
| 52 | 533 | 382 | 74 | 71.5 | 110 | 535 | 500 | 793 | 68 | 591 | 425 | 1006 | 48 | 64 |
| 54 | 556 | 385 | 73 | 72 | 135 | 555 | 520 | 819 | 65 | 597 | 425 | 1014 | 48 | 61 |
| 56 | 570 | 396 | 73 | 72 | 150 | 570 | 540 | 836 | 65 | 613 | 425 | 1029 | 48 | 61 |
| 58 | 592 | 404 | 73 | 72 | 175 | 585 | 560 | 860 | 62 | 628 | 425 | 1046 | 48 | 61 |
| 60 | 606 | 415 | 73 | 72 | 190 | 600 | 580 | 878 | 62 | 644 | 425 | 1061 | 48 | 61 |
All measurements in millimetres unless marked (°) for angles.
