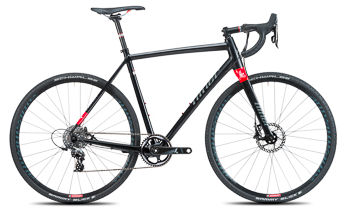

2015 Niner RLT9 MK I geometry
Full frame geometry for the 2015 Niner RLT9 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 532 | 363 | 74.5 | 70 | 105 | 510 | 470 | 740 | 70 | 583 | 435 | 1008 | 45 | 80 |
| 50 | 553 | 367 | 74 | 70.5 | 125 | 525 | 500 | 764 | 70 | 589 | 435 | 1015 | 45 | 76 |
| 53 | 574 | 375 | 73.5 | 71 | 145 | 545 | 530 | 788 | 70 | 600 | 435 | 1025 | 45 | 73 |
| 56 | 589 | 385 | 73 | 71.5 | 165 | 565 | 560 | 815 | 65 | 611 | 435 | 1035 | 45 | 70 |
| 59 | 610 | 398 | 73 | 72 | 185 | 585 | 590 | 842 | 65 | 626 | 435 | 1053 | 45 | 66 |
| 62 | 631 | 406 | 72.5 | 72.5 | 205 | 605 | 620 | 867 | 65 | 635 | 435 | 1062 | 45 | 63 |
All measurements in millimetres unless marked (°) for angles.
