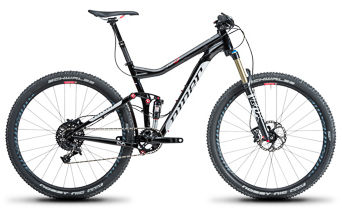

2015 Niner RIP 9 geometry
Full frame geometry for the 2015 Niner RIP 9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-120 | 608 | 407 | 73.5 | 70.5 | 105 | 587 | 406 | 704 | 29 | 660 | 455 | 1114 |
| S-140 | 615 | 397 | 72.5 | 69.5 | 105 | 591 | 406 | 712 | 22 | 666 | 455 | 1121 |
| M-120 | 622 | 419 | 73.5 | 70.5 | 120 | 603 | 458 | 743 | 29 | 677 | 455 | 1131 |
| M-140 | 629 | 408 | 72.5 | 69.5 | 120 | 607 | 458 | 752 | 22 | 683 | 455 | 1137 |
| L-120 | 631 | 435 | 73.5 | 70.5 | 130 | 622 | 509 | 779 | 29 | 697 | 455 | 1150 |
| L-140 | 638 | 425 | 72.5 | 69.5 | 130 | 626 | 509 | 788 | 22 | 703 | 455 | 1157 |
| XL-120 | 646 | 450 | 73.5 | 70.5 | 145 | 641 | 559 | 811 | 29 | 716 | 455 | 1170 |
| XL-140 | 653 | 439 | 72.5 | 69.5 | 145 | 645 | 559 | 819 | 22 | 723 | 455 | 1177 |
All measurements in millimetres unless marked (°) for angles.
