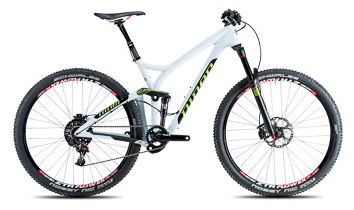

2015 Niner RIP 9 RDO MK I geometry
Full frame geometry for the 2015 Niner RIP 9 RDO MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-120 | 603 | 408 | 73.5 | 70.5 | 100 | 587 | 406 | 701 | 29 | 660 | 450 | 1108 |
| S-140 | 610 | 398 | 72.5 | 69.5 | 100 | 592 | 406 | 705 | 22 | 666 | 450 | 1111 |
| M-120 | 622 | 419 | 73.5 | 70.5 | 120 | 603 | 459 | 748 | 29 | 677 | 450 | 1126 |
| M-140 | 629 | 409 | 72.5 | 69.5 | 120 | 608 | 459 | 751 | 22 | 684 | 450 | 1133 |
| L-120 | 631 | 435 | 73.5 | 70.5 | 130 | 622 | 509 | 779 | 29 | 697 | 450 | 1145 |
| L-140 | 638 | 425 | 72.5 | 69.5 | 130 | 627 | 509 | 788 | 22 | 703 | 450 | 1152 |
| XL-120 | 646 | 450 | 73.5 | 70.5 | 145 | 641 | 559 | 814 | 29 | 717 | 450 | 1165 |
| XL-140 | 653 | 440 | 72.5 | 69.5 | 145 | 646 | 559 | 823 | 22 | 723 | 450 | 1172 |
All measurements in millimetres unless marked (°) for angles.
