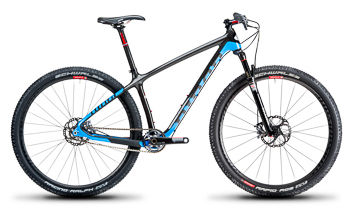

2015 Niner ONE 9 RDO geometry
Full frame geometry for the 2015 Niner ONE 9 RDO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-80 | 605 | 413 | 74 | 72 | 105 | 587 | 394 | 702 | 62 | 639 | 439 | 1071 |
| M-80 | 610 | 428 | 74 | 72 | 110 | 603 | 419 | 722 | 62 | 656 | 439 | 1087 |
| S-100 | 612 | 402 | 73 | 71 | 105 | 590 | 394 | 706 | 54 | 643 | 439 | 1077 |
| M-100 | 617 | 418 | 73 | 71 | 110 | 607 | 419 | 726 | 54 | 660 | 439 | 1094 |
| L-80 | 624 | 443 | 74 | 72 | 125 | 622 | 483 | 776 | 62 | 675 | 439 | 1107 |
| L-100 | 631 | 433 | 73 | 71 | 125 | 626 | 483 | 781 | 54 | 680 | 439 | 1113 |
| XL-80 | 643 | 457 | 74 | 72 | 145 | 641 | 533 | 818 | 62 | 695 | 439 | 1127 |
| XL-100 | 651 | 446 | 73 | 71 | 145 | 645 | 533 | 823 | 54 | 700 | 439 | 1133 |
All measurements in millimetres unless marked (°) for angles.
