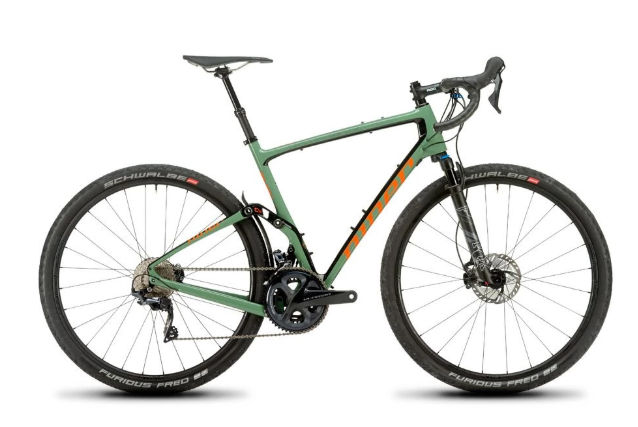

2019 Niner MCR geometry
Full frame geometry for the 2019 Niner MCR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 53 | 575 | 382 | 73.8 | 71 | 133 | 545 | 490 | 764 | 62 | 609 | 440 | 1041 | 44 | 78 |
| 56 | 597 | 394 | 73.5 | 71.5 | 153 | 571 | 520 | 789 | 62 | 623 | 440 | 1055 | 44 | 74 |
| 59 | 618 | 409 | 73.3 | 72 | 173 | 595 | 550 | 816 | 62 | 639 | 440 | 1072 | 44 | 71 |
All measurements in millimetres unless marked (°) for angles.
