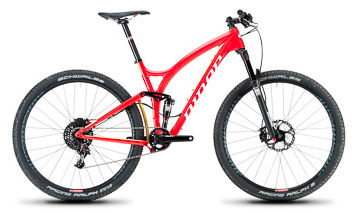

2015 Niner JET 9 Carbon geometry
Full frame geometry for the 2015 Niner JET 9 Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS-100 | 590 | 393 | 74.5 | 71 | 100 | 559 | 381 | 672 | 35 | 633 | 455 | 1086 |
| XS-120 | 597 | 383 | 73.5 | 70 | 100 | 562 | 381 | 679 | 27 | 639 | 455 | 1092 |
| S-100 | 600 | 409 | 74.5 | 71 | 110 | 578 | 406 | 690 | 35 | 652 | 455 | 1105 |
| S-120 | 607 | 399 | 73.5 | 70 | 110 | 580 | 406 | 696 | 27 | 658 | 455 | 1112 |
| M-100 | 612 | 422 | 74.5 | 71.5 | 120 | 595 | 457 | 715 | 35 | 663 | 455 | 1116 |
| M-120 | 618 | 413 | 73.5 | 70.5 | 120 | 598 | 457 | 721 | 27 | 668 | 455 | 1122 |
| L-100 | 621 | 444 | 74.5 | 71.5 | 130 | 615 | 509 | 738 | 35 | 689 | 455 | 1141 |
| L-120 | 628 | 434 | 73.5 | 70.5 | 130 | 618 | 509 | 745 | 27 | 694 | 455 | 1148 |
| XL-100 | 635 | 459 | 74.5 | 71.5 | 145 | 635 | 559 | 766 | 35 | 708 | 455 | 1161 |
| XL-120 | 643 | 449 | 73.5 | 70.5 | 145 | 638 | 559 | 773 | 27 | 714 | 455 | 1168 |
All measurements in millimetres unless marked (°) for angles.
