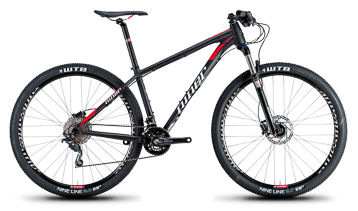

2015 Niner EMD 9 geometry
Full frame geometry for the 2015 Niner EMD 9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS-100 | 610 | 398 | 74 | 70.5 | 100 | 572 | 356 | 694 | 57 | 643 | 436 | 1075 |
| S-100 | 612 | 403 | 74 | 71 | 100 | 587 | 394 | 724 | 57 | 652 | 435 | 1088 |
| XS-120 | 617 | 386 | 73 | 69.5 | 100 | 576 | 356 | 699 | 51 | 650 | 436 | 1084 |
| S-120 | 619 | 392 | 73 | 70 | 100 | 591 | 394 | 729 | 51 | 657 | 435 | 1094 |
| M-100 | 625 | 424 | 74 | 72 | 110 | 603 | 419 | 744 | 57 | 660 | 435 | 1093 |
| L-100 | 631 | 433 | 74 | 72 | 125 | 522 | 483 | 796 | 57 | 677 | 435 | 1110 |
| M-120 | 634 | 412 | 73 | 71 | 110 | 607 | 419 | 749 | 51 | 665 | 435 | 1099 |
| L-120 | 639 | 422 | 73 | 71 | 125 | 526 | 483 | 802 | 51 | 683 | 435 | 1116 |
| XL-100 | 659 | 452 | 74 | 72 | 145 | 641 | 533 | 837 | 57 | 699 | 435 | 1132 |
| XL-120 | 667 | 440 | 73 | 71 | 145 | 645 | 533 | 843 | 51 | 705 | 435 | 1138 |
All measurements in millimetres unless marked (°) for angles.
