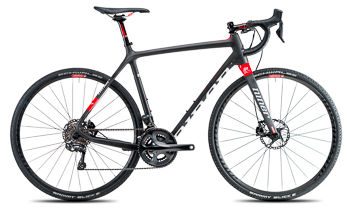

2015 Niner BSB 9 RDO geometry
Full frame geometry for the 2015 Niner BSB 9 RDO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 529 | 363 | 74.5 | 70.5 | 100 | 510 | 470 | 721 | 68 | 577 | 425 | 993 | 45 | 76 |
| 50 | 545 | 369 | 74 | 71 | 115 | 525 | 500 | 745 | 68 | 583 | 425 | 999 | 45 | 73 |
| 53 | 565 | 377 | 73.5 | 71.5 | 135 | 545 | 530 | 769 | 68 | 594 | 425 | 1010 | 45 | 70 |
| 56 | 582 | 393 | 73.5 | 72 | 155 | 565 | 560 | 797 | 65 | 610 | 425 | 1028 | 45 | 66 |
| 59 | 603 | 401 | 73 | 72.5 | 175 | 585 | 590 | 823 | 65 | 620 | 425 | 1037 | 45 | 63 |
| 62 | 622 | 409 | 72.5 | 73 | 195 | 605 | 620 | 848 | 65 | 634 | 425 | 1052 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
