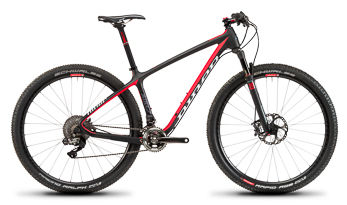

2015 Niner AIR 9 RDO MK I geometry

Name: 2015 Niner AIR 9 RDO MK I
Brand: Niner

Full frame geometry for the 2015 Niner AIR 9 RDO MK I, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)
XS-100	599	392	73	71	95	575	381	688	54	639	439	1073
XS-120	606	382	72	70	95	578	381	692	47	645	439	1079
S-100	612	403	73	71	105	590	394	724	54	643	439	1088
M-100	617	418	73	71	110	607	419	744	54	660	439	1094
S-120	619	392	72	70	105	593	394	729	47	649	439	1094
M-120	624	408	72	70	110	610	419	749	47	665	439	1100
L-100	631	433	73	71	125	626	483	496	54	680	439	1114
L-120	639	422	72	70	125	629	483	802	47	685	439	1120
XL-100	651	446	73	71	145	645	533	837	54	699	439	1134
XL-120	658	436	72	70	145	648	533	843	47	705	439	1140

All measurements in millimetres unless marked (°) for angles.
