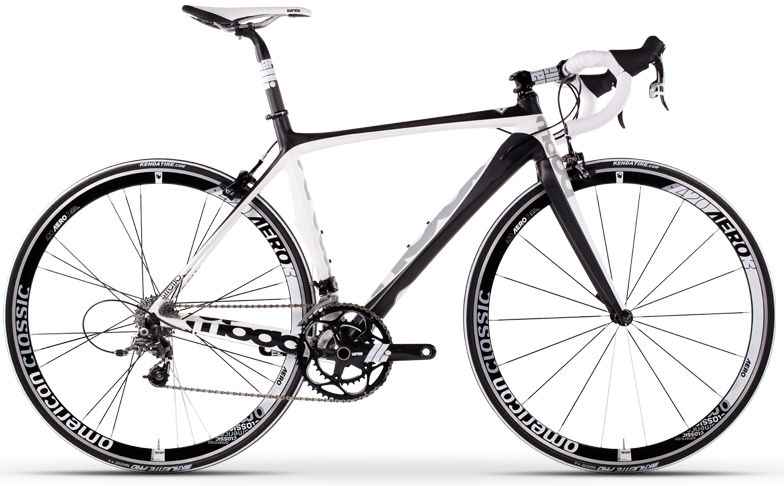

2014 Moda Stretto geometry
Full frame geometry for the 2014 Moda Stretto, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 523 | 385 | 74.5 | 71.5 | 125 | 530 | 68 | 585 | 403 | 979 | 43 | 66 |
| 52 | 535 | 387 | 74.5 | 72 | 135 | 535 | 68 | 586 | 403 | 980 | 43 | 63 |
| 54 | 551 | 387 | 74 | 72.5 | 150 | 545 | 68 | 587 | 405 | 983 | 43 | 60 |
| 56 | 562 | 394 | 73.5 | 73 | 160 | 560 | 68 | 586 | 405 | 981 | 43 | 57 |
| 58 | 571 | 395 | 73 | 73 | 170 | 570 | 68 | 597 | 408 | 995 | 43 | 57 |
| 61 | 586 | 401 | 73 | 73 | 185 | 580 | 68 | 607 | 408 | 1005 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
