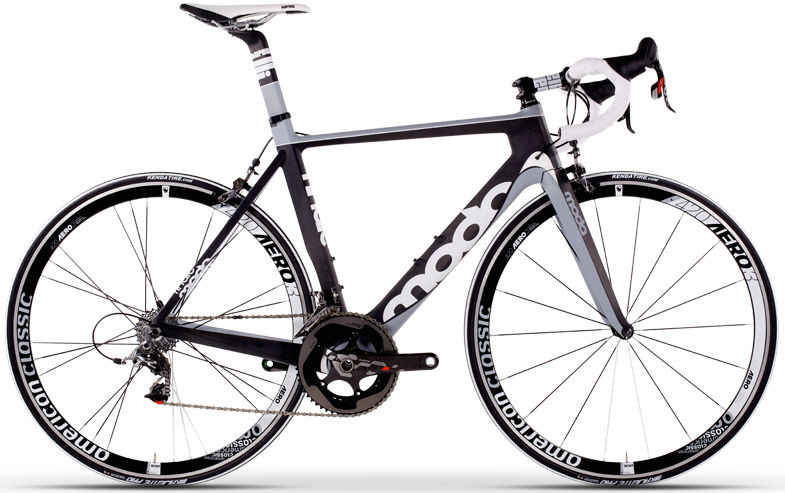

2014 Moda Finale geometry
Full frame geometry for the 2014 Moda Finale, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 506 | 370 | 74 | 72 | 105 | 515 | 68 | 562 | 405 | 957 | 43 | 63 |
| 52 | 520 | 381 | 74 | 72 | 120 | 530 | 68 | 578 | 405 | 973 | 43 | 63 |
| 54 | 541 | 380 | 73.5 | 72.5 | 140 | 540 | 68 | 584 | 405 | 979 | 43 | 60 |
| 56 | 560 | 394 | 73.5 | 72.5 | 160 | 560 | 68 | 599 | 405 | 994 | 43 | 60 |
| 58 | 581 | 402 | 73 | 73 | 180 | 580 | 68 | 608 | 407 | 1006 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
