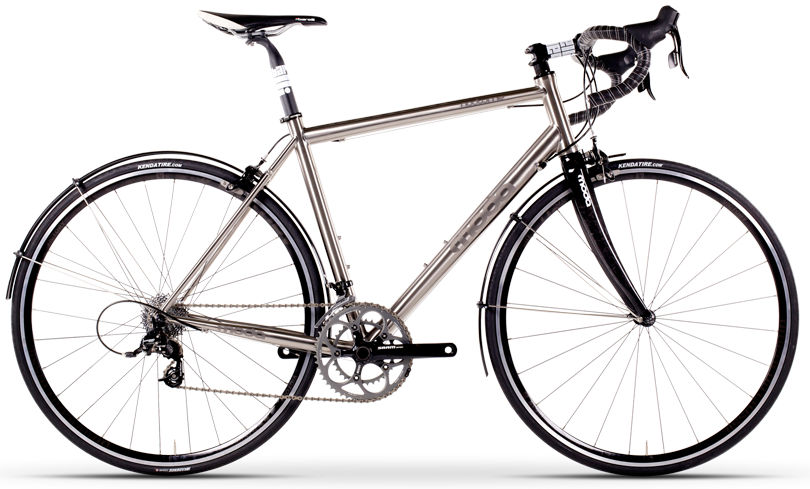

2014 Moda Nocturne geometry
Full frame geometry for the 2014 Moda Nocturne, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 523 | 380 | 74.5 | 71.5 | 125 | 525 | 68 | 584 | 425 | 1000 | 45 | 64 |
| M | 543 | 379 | 73.5 | 72 | 145 | 540 | 68 | 586 | 425 | 1001 | 45 | 61 |
| L | 569 | 386 | 73 | 72.5 | 170 | 560 | 68 | 595 | 425 | 1011 | 45 | 58 |
| XL | 599 | 396 | 72.5 | 73 | 200 | 585 | 68 | 609 | 425 | 1025 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
