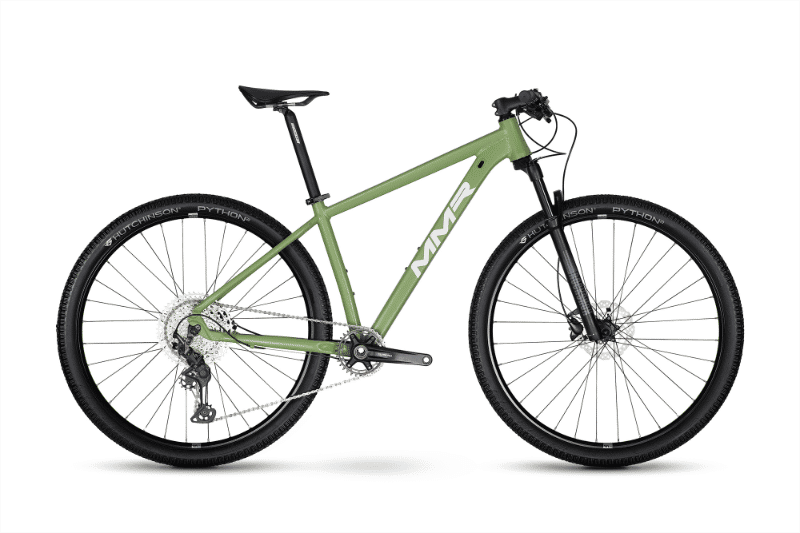

2026 MMR Woki geometry
Full frame geometry for the 2026 MMR Woki, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 610 | 381 | 73.5 | 70 | 100 | 560 | 395 | 55 | 445 | 1077 | 51 | 75.5 |
| M | 624 | 390 | 73 | 70 | 110 | 575 | 432 | 60 | 445 | 1090 | 51 | 75.5 |
| L | 633 | 396 | 73 | 70 | 120 | 590 | 483 | 60 | 445 | 1100 | 51 | 75.5 |
| XL | 643 | 407 | 73 | 70 | 130 | 605 | 533 | 60 | 445 | 1115 | 51 | 75.5 |
All measurements in millimetres unless marked (°) for angles.
