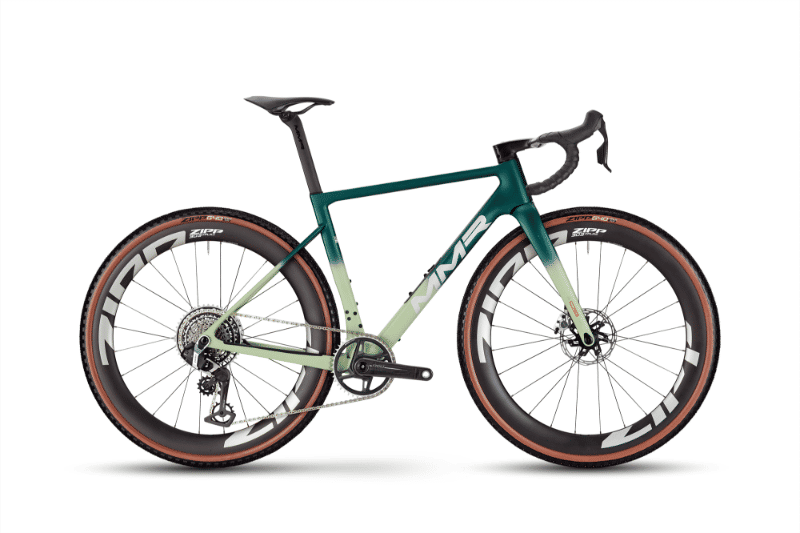

2026 MMR Simun geometry
Full frame geometry for the 2026 MMR Simun, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 370 | 74.5 | 70.5 | 87 | 513 | 440 | 754 | 73 | 425 | 998 | 50 | 73.5 |
| S | 525 | 380 | 74.5 | 71 | 95 | 526 | 460 | 759 | 73 | 425 | 1007 | 50 | 70.2 |
| M | 550 | 390 | 74 | 71 | 121 | 548 | 480 | 791 | 73 | 425 | 1026 | 50 | 70 |
| L | 575 | 400 | 73 | 71.5 | 146 | 576 | 510 | 818 | 73 | 425 | 1039 | 50 | 67 |
All measurements in millimetres unless marked (°) for angles.
