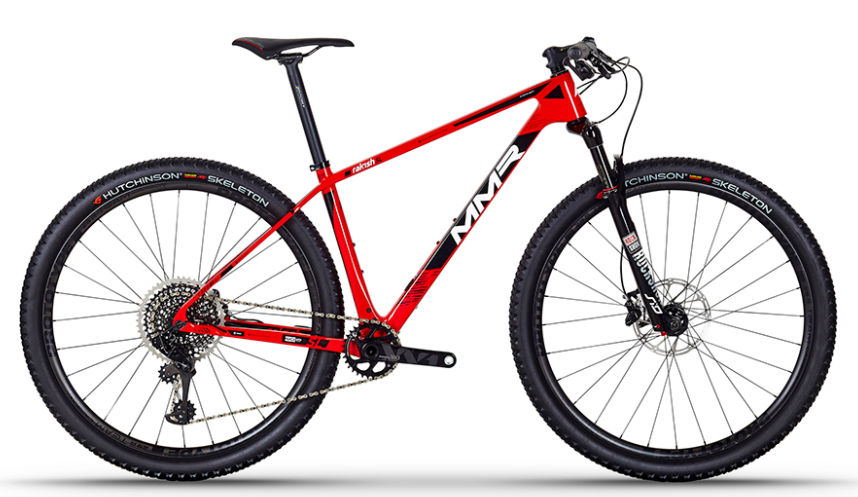

2018 MMR Rakish geometry
Full frame geometry for the 2018 MMR Rakish, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 407 | 74.2 | 70 | 95 | 575 | 381 | 60 | 435 | 1085 | 51 |
| M | 615 | 421 | 74.2 | 70 | 105 | 595 | 432 | 60 | 435 | 1102 | 51 |
| L | 627 | 438 | 74.2 | 70.5 | 115 | 615 | 483 | 60 | 435 | 1117 | 51 |
| XL | 635 | 456 | 74.1 | 71 | 125 | 634 | 533 | 60 | 435 | 1131 | 51 |
All measurements in millimetres unless marked (°) for angles.
