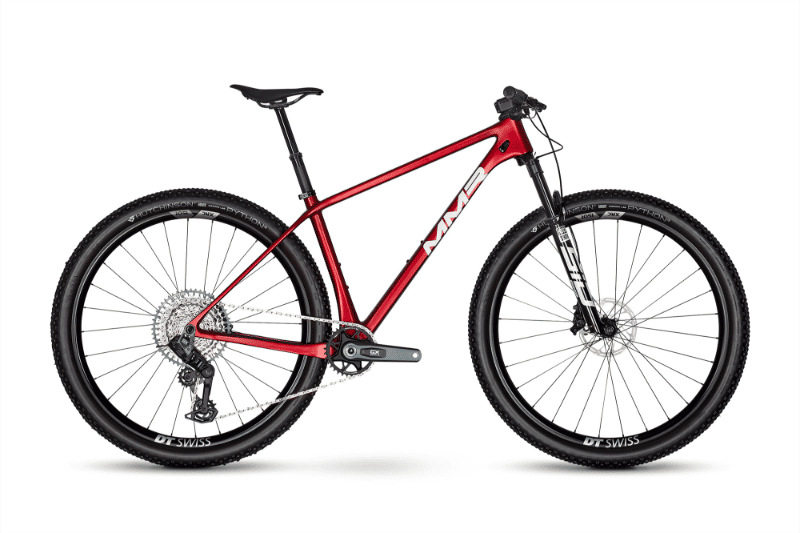

2026 MMR Rakish SL geometry
Full frame geometry for the 2026 MMR Rakish SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 407 | 74.2 | 69.5 | 95 | 578 | 394 | 60 | 425 | 1086 | 51 | 84 |
| M | 614 | 428 | 74.2 | 69.5 | 105 | 601 | 432 | 60 | 425 | 1110 | 51 | 84 |
| L | 623 | 445 | 74.2 | 69.5 | 115 | 621 | 483 | 60 | 425 | 1131 | 51 | 84 |
All measurements in millimetres unless marked (°) for angles.
