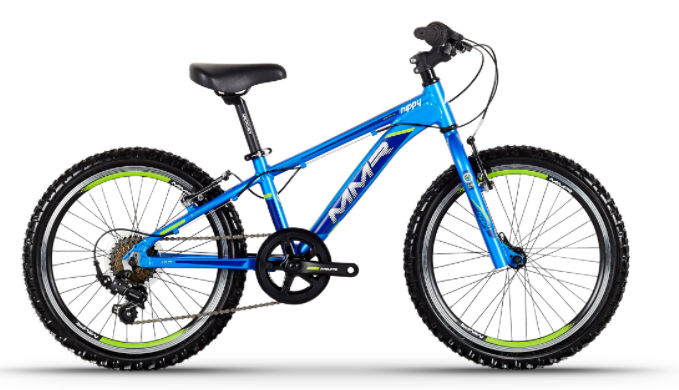

2018 MMR Nippy geometry
Full frame geometry for the 2018 MMR Nippy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 405 | 300 | 71 | 70 | 100 | 442 | 260 | 10 | 355 | 842 | 38 |
All measurements in millimetres unless marked (°) for angles.
