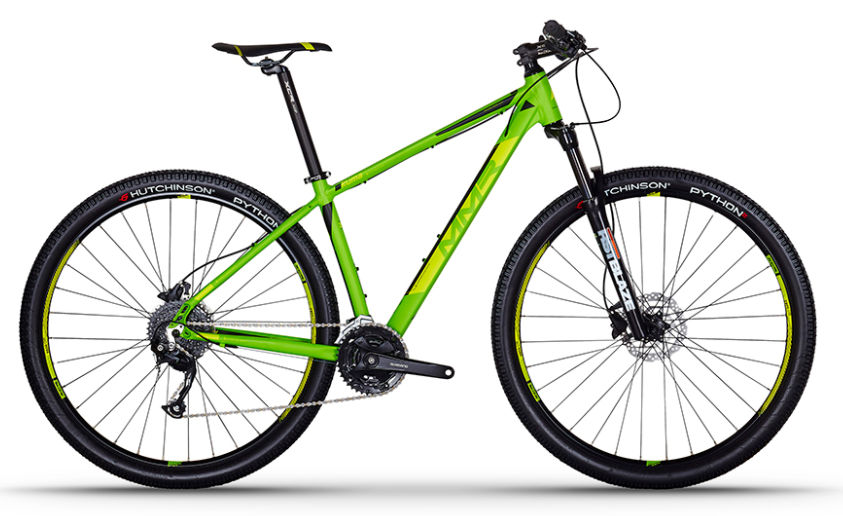

2018 MMR Kuma 29 geometry
Full frame geometry for the 2018 MMR Kuma 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 622 | 362 | 73 | 70 | 105 | 552 | 395 | 55 | 445 | 1060 | 46 |
| M | 636 | 372 | 73 | 70 | 115 | 567 | 432 | 60 | 445 | 1072 | 46 |
| L | 643 | 381 | 72.5 | 70 | 125 | 585 | 483 | 60 | 445 | 1084 | 46 |
| XL | 655 | 393 | 72.5 | 70 | 135 | 600 | 533 | 60 | 445 | 1100 | 46 |
All measurements in millimetres unless marked (°) for angles.
