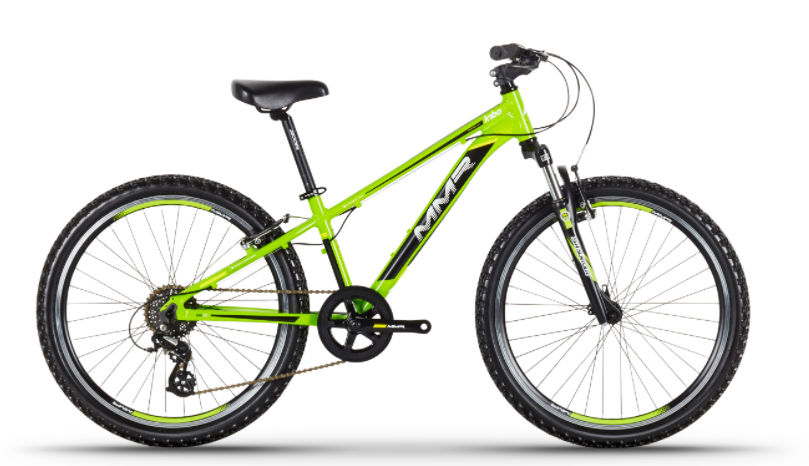

2018 MMR Kibo geometry
Full frame geometry for the 2018 MMR Kibo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 505 | 350 | 72 | 71 | 110 | 515 | 300 | 25 | 410 | 965 | 38 |
All measurements in millimetres unless marked (°) for angles.
