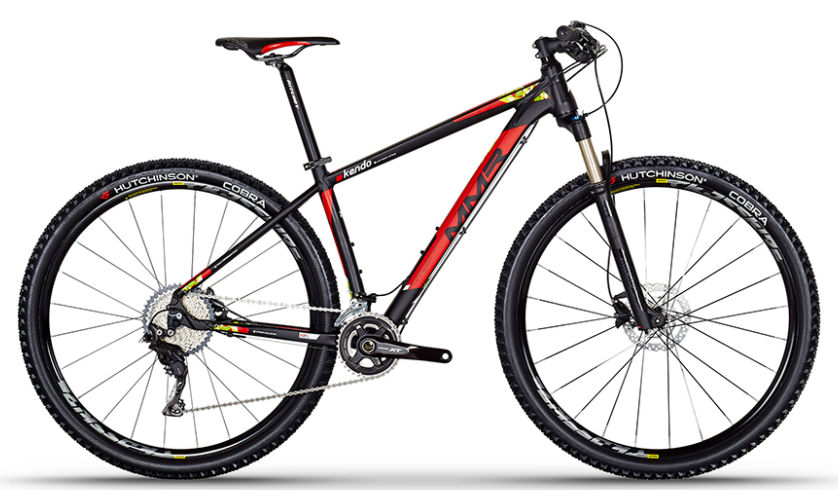

2018 MMR Kendo geometry
Full frame geometry for the 2018 MMR Kendo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 380 | 73.5 | 70 | 100 | 560 | 395 | 55 | 445 | 1076 | 46 |
| M | 619 | 391 | 73 | 70 | 110 | 575 | 432 | 60 | 445 | 1090 | 46 |
| L | 628 | 397 | 73 | 70 | 120 | 590 | 483 | 60 | 445 | 1100 | 46 |
| XL | 637 | 410 | 73 | 70 | 130 | 605 | 533 | 60 | 445 | 1115 | 46 |
| XXL | 647 | 422 | 73 | 70 | 140 | 620 | 584 | 60 | 445 | 1131 | 46 |
All measurements in millimetres unless marked (°) for angles.
