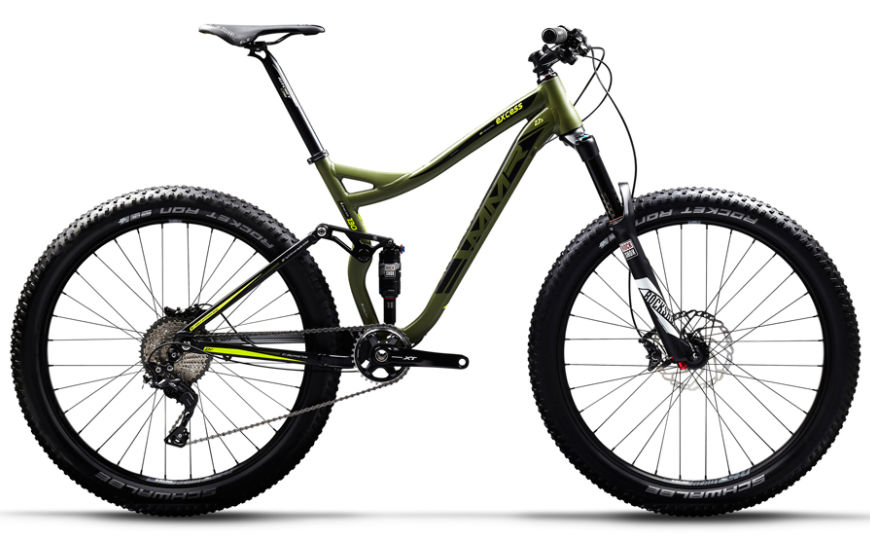

2018 MMR Excess geometry
Full frame geometry for the 2018 MMR Excess, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 573 | 377 | 72 | 69 | 110 | 564 | 406 | 7 | 455 | 1109 | 50 |
| M | 583 | 400 | 72 | 69 | 120 | 589 | 457 | 7 | 455 | 1134 | 50 |
| L | 591 | 426 | 72 | 69 | 130 | 619 | 483 | 7 | 455 | 1165 | 50 |
All measurements in millimetres unless marked (°) for angles.
