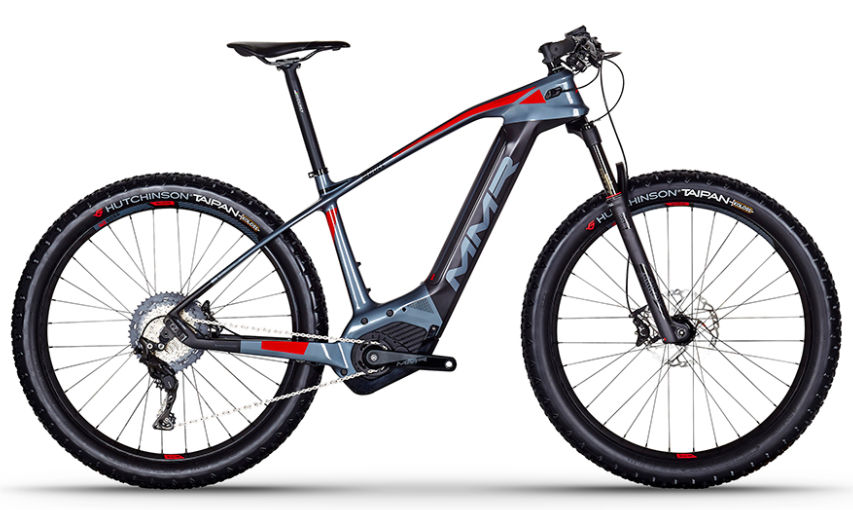

2018 MMR Bolt geometry
Full frame geometry for the 2018 MMR Bolt, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 633 | 402 | 73 | 68.5 | 105 | 595 | 410 | 60 | 480 | 1158 | 51 |
| M | 642 | 409 | 73 | 68.5 | 115 | 605 | 440 | 60 | 480 | 1169 | 51 |
| L | 652 | 416 | 73 | 68.5 | 125 | 615 | 480 | 60 | 480 | 1180 | 51 |
| XL | 670 | 435 | 73 | 68.5 | 145 | 640 | 530 | 60 | 480 | 1206 | 51 |
All measurements in millimetres unless marked (°) for angles.
