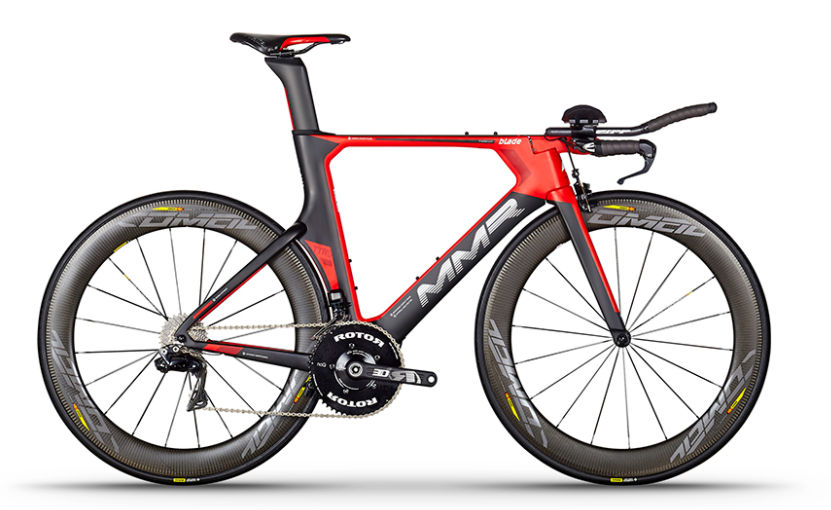

2018 MMR Blade geometry
Full frame geometry for the 2018 MMR Blade, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 495 | 385 | 78 | 73 | 490 | 506 | 70 | 400 | 954 | 43 |
| S | 514 | 401 | 78 | 73 | 510 | 526 | 70 | 400 | 975 | 43 |
| M | 534 | 417 | 78 | 73 | 530 | 545 | 70 | 400 | 997 | 43 |
| L | 553 | 433 | 78 | 73 | 550 | 565 | 70 | 400 | 1019 | 43 |
All measurements in millimetres unless marked (°) for angles.
