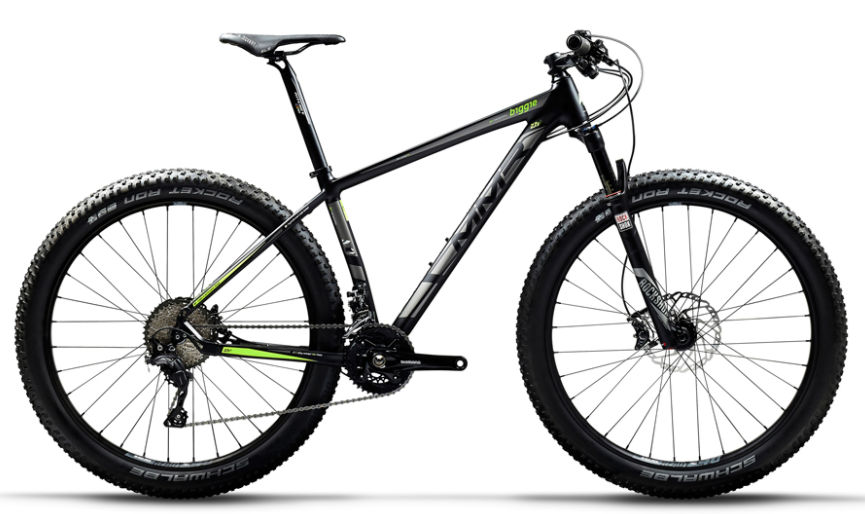

2018 MMR Biggie geometry
Full frame geometry for the 2018 MMR Biggie, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 385 | 73 | 70 | 95 | 570 | 380 | 60 | 440 | 1072 | 50 |
| M | 606 | 404 | 73 | 70 | 100 | 590 | 430 | 60 | 440 | 1093 | 50 |
| L | 620 | 420 | 73 | 70 | 115 | 610 | 479 | 60 | 440 | 1113 | 50 |
| XL | 631 | 436 | 73 | 70 | 126 | 630 | 530 | 60 | 440 | 1133 | 50 |
All measurements in millimetres unless marked (°) for angles.
