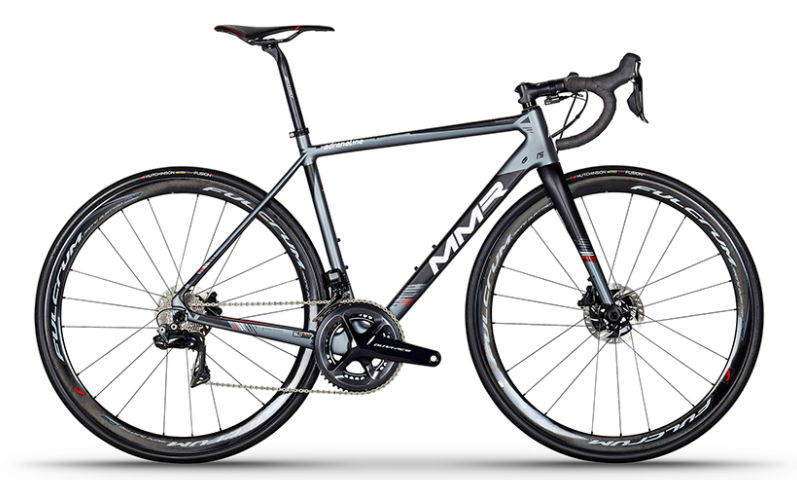

2018 MMR Adrenaline Disc geometry
Full frame geometry for the 2018 MMR Adrenaline Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 490 | 384 | 75 | 72 | 90 | 516 | 450 | 70 | 405 | 965 | 43 |
| S | 511 | 390 | 75 | 72.5 | 110 | 527 | 480 | 70 | 405 | 973 | 43 |
| M | 531 | 393 | 75 | 73 | 130 | 536 | 510 | 70 | 405 | 979 | 43 |
| L | 554 | 398 | 73.5 | 73 | 155 | 562 | 540 | 68 | 405 | 990 | 43 |
| XL | 587 | 401 | 73 | 73 | 190 | 581 | 570 | 68 | 405 | 1004 | 43 |
| XXL | 616 | 405 | 73 | 73 | 220 | 594 | 600 | 68 | 405 | 1017 | 43 |
All measurements in millimetres unless marked (°) for angles.
