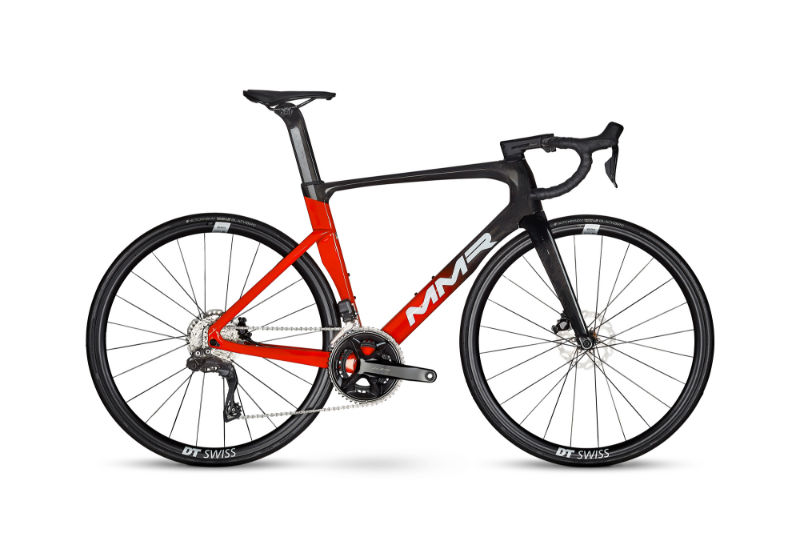

2025 MMR Adrenaline Aero geometry
Full frame geometry for the 2025 MMR Adrenaline Aero, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 500 | 376 | 74 | 71 | 105 | 520 | 430 | 65 | 406 | 974 | 45 | 69 |
| S | 514 | 388 | 74 | 72.5 | 115 | 535 | 460 | 65 | 406 | 977 | 45 | 61 |
| M | 544 | 397 | 74 | 73 | 145 | 553 | 500 | 65 | 406 | 991 | 45 | 58 |
| L | 564 | 407 | 74 | 73 | 165 | 569 | 540 | 65 | 406 | 1007 | 45 | 58 |
| XL | 578 | 420 | 74 | 73 | 180 | 585 | 570 | 65 | 406 | 1024 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
