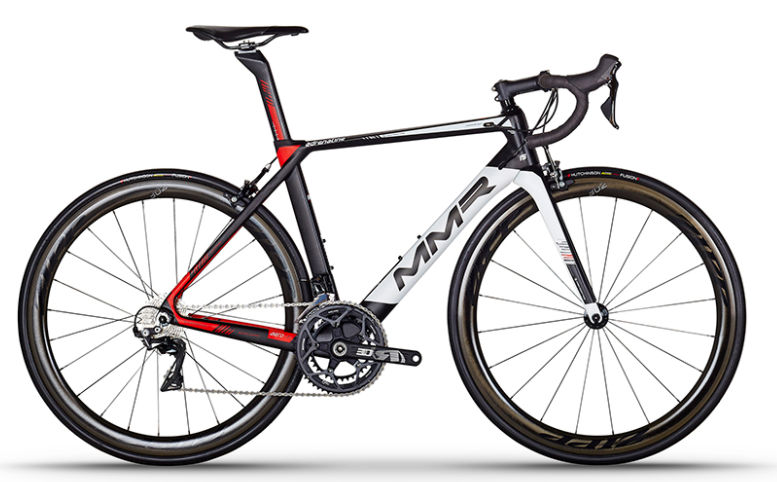

2018 MMR Adren. Aero geometry
Full frame geometry for the 2018 MMR Adren. Aero, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 499 | 373 | 74.5 | 71 | 100 | 511 | 460 | 70 | 405 | 965 | 43 |
| S | 516 | 379 | 74.5 | 72 | 115 | 522 | 460 | 70 | 405 | 968 | 43 |
| M | 537 | 386 | 74 | 72.5 | 135 | 540 | 480 | 70 | 405 | 977 | 43 |
| L | 551 | 392 | 73.5 | 73 | 150 | 555 | 498 | 68 | 405 | 984 | 43 |
| XL | 570 | 399 | 73 | 73 | 170 | 573 | 521 | 68 | 405 | 997 | 43 |
| XXL | 584 | 406 | 73 | 73 | 185 | 585 | 535 | 68 | 405 | 1008 | 43 |
All measurements in millimetres unless marked (°) for angles.
