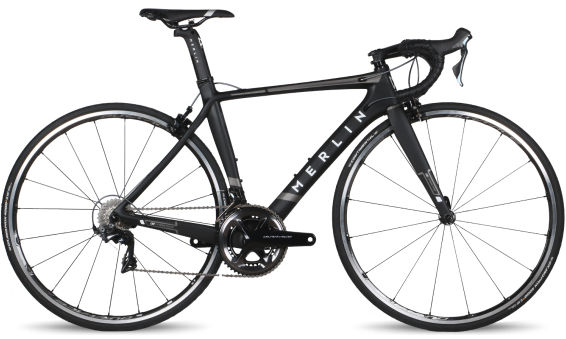

2018 Merlin UK Nitro Aero geometry
Full frame geometry for the 2018 Merlin UK Nitro Aero, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 506 | 376 | 74 | 71 | 108 | 521 | 470 | 776 | 71 | 576 | 408 | 973 | 43 | 70 |
| 50 | 512 | 383 | 73.8 | 71.3 | 114 | 532 | 500 | 790 | 71 | 581 | 408 | 978 | 43 | 68 |
| 52 | 528 | 387 | 73.4 | 71.7 | 129 | 545 | 520 | 809 | 71 | 587 | 408 | 984 | 43 | 66 |
| 54 | 542 | 392 | 73.1 | 72 | 145 | 557 | 540 | 829 | 69 | 595 | 410 | 995 | 43 | 64 |
| 56 | 558 | 396 | 72.7 | 72.4 | 160 | 570 | 560 | 848 | 69 | 600 | 410 | 1000 | 43 | 61 |
| 58 | 572 | 400 | 72.4 | 72.7 | 174 | 582 | 580 | 866 | 69 | 606 | 412 | 1009 | 43 | 60 |
| 60 | 588 | 404 | 72 | 73.1 | 191 | 595 | 600 | 782 | 67 | 611 | 412 | 1014 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
