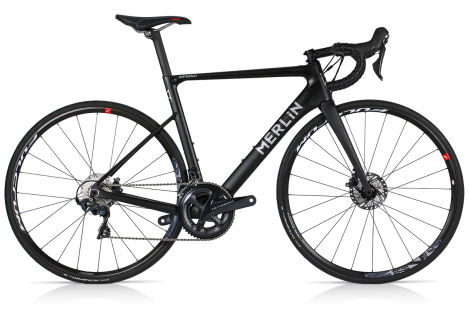

2019 Merlin UK Inferno geometry
Full frame geometry for the 2019 Merlin UK Inferno, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 518 | 381 | 75 | 71.5 | 101 | 520 | 464 | 410 |
| S | 542 | 385 | 75 | 71.5 | 126 | 530 | 489 | 410 |
| M | 558 | 390 | 74 | 72 | 141 | 550 | 519 | 410 |
| L | 572 | 395 | 73 | 72 | 156 | 570 | 549 | 410 |
| XL | 604 | 410 | 73 | 73 | 186 | 595 | 564 | 410 |
All measurements in millimetres unless marked (°) for angles.
