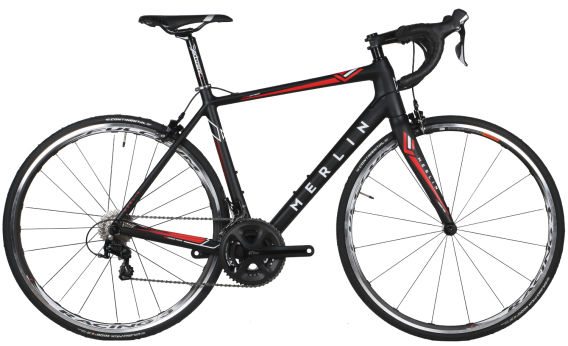

2018 Merlin UK Cordite geometry
Full frame geometry for the 2018 Merlin UK Cordite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42 | 517 | 368 | 75 | 71 | 115 | 506 | 420 | 758 | 72 | 583 | 408 | 979 | 45 | 68 |
| 46 | 531 | 372 | 74.9 | 71.5 | 125 | 515 | 460 | 781 | 72 | 577 | 410 | 976 | 45 | 65 |
| 49 | 555 | 376 | 74.2 | 72 | 150 | 533 | 490 | 810 | 72 | 585 | 411 | 985 | 45 | 62 |
| 52 | 579 | 380 | 43.6 | 72 | 175 | 551 | 520 | 950 | 72 | 596 | 413 | 999 | 45 | 62 |
| 55 | 602 | 385 | 43 | 72 | 200 | 569 | 550 | 988 | 72 | 609 | 413 | 1011 | 45 | 62 |
| 58 | 626 | 390 | 42.5 | 72 | 225 | 587 | 580 | 978 | 72 | 621 | 415 | 1026 | 45 | 62 |
All measurements in millimetres unless marked (°) for angles.
