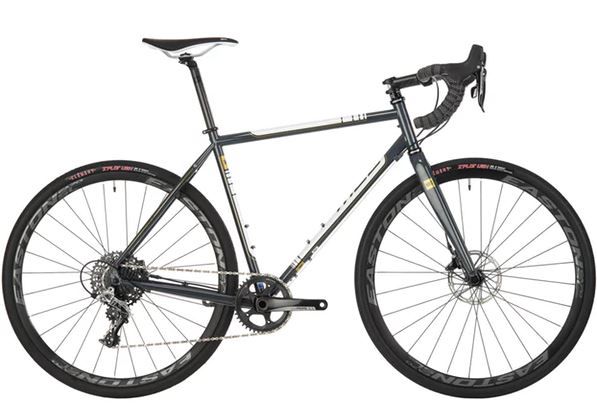

2017 MEC Provincial Road 233 geometry
Full frame geometry for the 2017 MEC Provincial Road 233, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 527 | 379 | 74.5 | 70.5 | 90 | 525 | 440 | 718 | 70 | 592 | 430 | 1012 | 45 |
| XS | 536 | 381 | 74.5 | 70.5 | 100 | 530 | 470 | 737 | 70 | 598 | 430 | 1018 | 45 |
| S | 557 | 381 | 73.5 | 71 | 120 | 545 | 500 | 761 | 70 | 599 | 430 | 1020 | 45 |
| M | 578 | 394 | 73.5 | 71.5 | 140 | 565 | 530 | 785 | 70 | 615 | 430 | 1035 | 45 |
| L | 598 | 394 | 73 | 72 | 160 | 575 | 560 | 809 | 70 | 615 | 430 | 1035 | 45 |
| XL | 617 | 405 | 72.5 | 72 | 180 | 600 | 590 | 832 | 70 | 634 | 430 | 1054 | 45 |
All measurements in millimetres unless marked (°) for angles.
