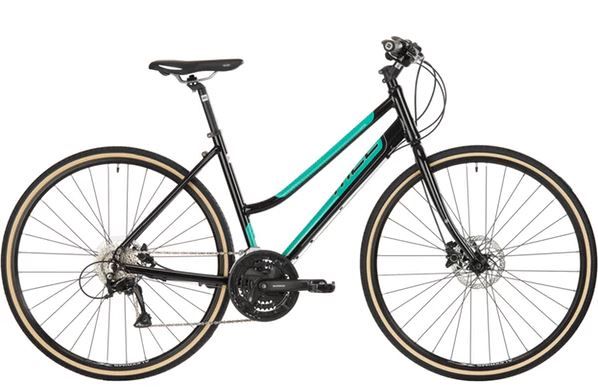

2017 MEC Midtown Womens geometry
Full frame geometry for the 2017 MEC Midtown Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 553 | 391 | 74 | 69 | 140 | 550 | 430 | 65 | 630 | 440 | 1062 | 45 |
| M | 567 | 392 | 73 | 69 | 155 | 560 | 470 | 65 | 631 | 440 | 1063 | 45 |
| L | 581 | 392 | 73 | 69 | 170 | 570 | 510 | 65 | 641 | 440 | 1073 | 45 |
All measurements in millimetres unless marked (°) for angles.
