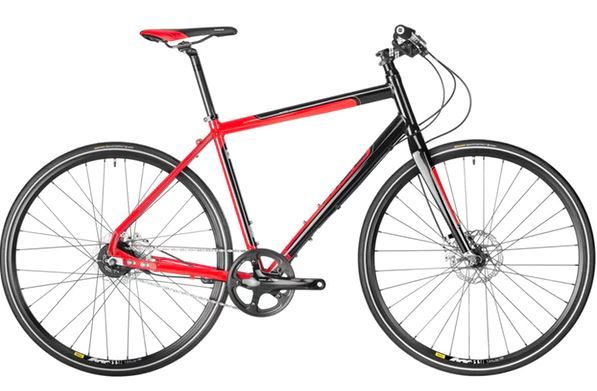

2017 MEC Hold Steady geometry
Full frame geometry for the 2017 MEC Hold Steady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 536 | 386 | 75.5 | 69.5 | 120 | 525 | 410 | 755 | 65 | 614 | 420 | 1035 | 45 |
| XS | 552 | 390 | 75 | 70 | 135 | 540 | 440 | 772 | 65 | 620 | 420 | 1042 | 45 |
| S | 566 | 390 | 74 | 70 | 150 | 550 | 470 | 789 | 65 | 621 | 420 | 1043 | 45 |
| M | 591 | 387 | 73.5 | 70.5 | 175 | 560 | 500 | 814 | 65 | 623 | 420 | 1045 | 45 |
| L | 611 | 387 | 73 | 70.5 | 195 | 570 | 530 | 835 | 65 | 627 | 420 | 1049 | 45 |
| XL | 634 | 400 | 72.5 | 71.5 | 215 | 600 | 560 | 856 | 65 | 641 | 420 | 1063 | 45 |
All measurements in millimetres unless marked (°) for angles.
