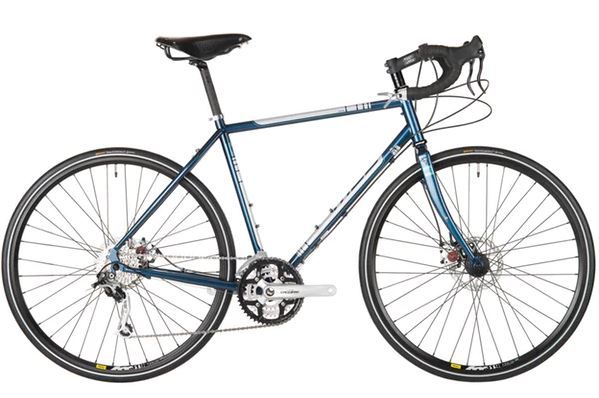

2017 MEC National geometry
Full frame geometry for the 2017 MEC National, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 549 | 362 | 74 | 70 | 120 | 520 | 470 | 719 | 75 | 592 | 450 | 1031 | 45 |
| S | 562 | 374 | 74 | 71 | 130 | 535 | 500 | 740 | 75 | 598 | 450 | 1037 | 45 |
| M | 583 | 382 | 73.5 | 71.5 | 150 | 555 | 530 | 764 | 75 | 609 | 450 | 1048 | 45 |
| L | 603 | 385 | 73 | 72 | 170 | 570 | 560 | 788 | 75 | 614 | 450 | 1053 | 45 |
| XL | 627 | 403 | 73 | 72 | 195 | 595 | 590 | 814 | 75 | 639 | 450 | 1078 | 45 |
All measurements in millimetres unless marked (°) for angles.
