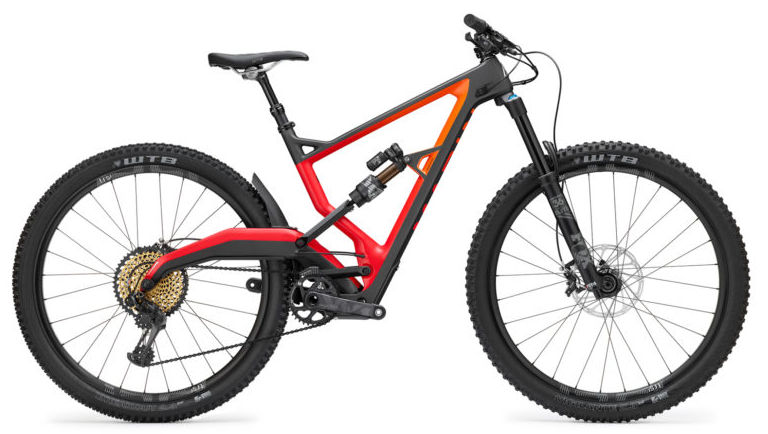

2018 Marin Wolf Ridge geometry
Full frame geometry for the 2018 Marin Wolf Ridge, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 626 | 435 | 73.5 | 66.5 | 90 | 595 | 420 | 711 | 37 | 435 | 1175 | 51 |
| S | 626 | 415 | 73.5 | 66.5 | 90 | 575 | 390 | 701 | 37 | 435 | 1155 | 51 |
| L | 636 | 462 | 73.5 | 66.5 | 100 | 620 | 465 | 754 | 37 | 435 | 1206 | 51 |
| XL | 659 | 476 | 73.5 | 66.5 | 125 | 638 | 525 | 800 | 37 | 435 | 1229 | 51 |
All measurements in millimetres unless marked (°) for angles.
