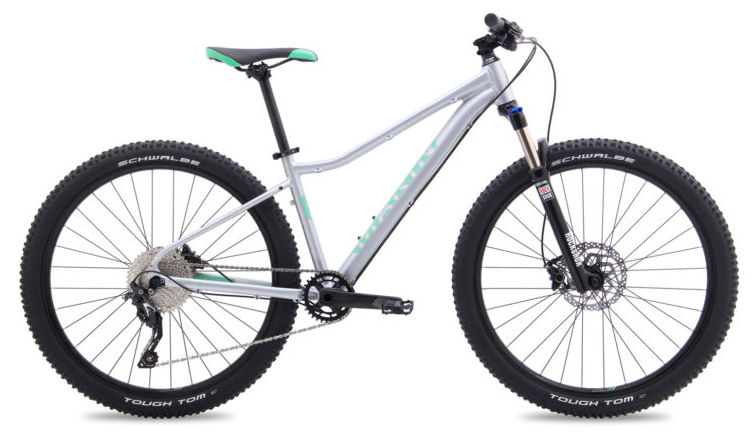

2018 Marin Wildcat Trail geometry
Full frame geometry for the 2018 Marin Wildcat Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 579 | 409 | 74 | 68 | 100 | 575 | 330 | 615 | 48 | 430 | 1098 | 44 |
| S | 583 | 423 | 74 | 68 | 105 | 590 | 381 | 652 | 48 | 430 | 1114 | 44 |
| M | 588 | 438 | 74 | 68 | 110 | 607 | 431 | 694 | 48 | 430 | 1131 | 44 |
| L | 592 | 457 | 74 | 68 | 115 | 627 | 482 | 735 | 48 | 430 | 1152 | 44 |
All measurements in millimetres unless marked (°) for angles.
