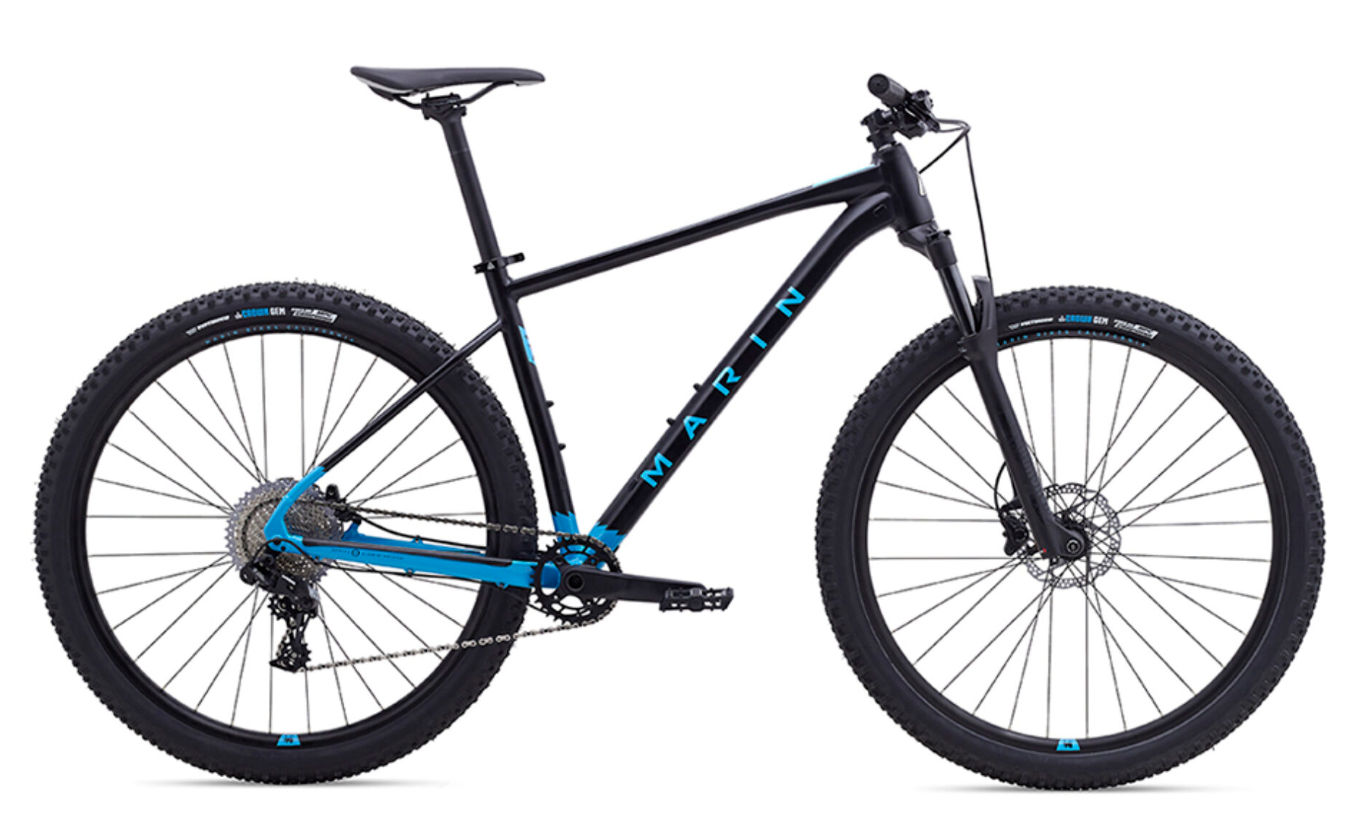

2019 Marin Team Marin geometry
Full frame geometry for the 2019 Marin Team Marin, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 614 | 422 | 75 | 69 | 105 | 587 | 381 | 687 | 66 | 691 | 435 | 1118 | 51 |
| M | 619 | 438 | 75 | 69 | 110 | 604 | 431 | 732 | 66 | 708 | 435 | 1135 | 51 |
| L | 623 | 456 | 74.9 | 69 | 115 | 624 | 482 | 775 | 66 | 729 | 435 | 1156 | 51 |
| XL | 628 | 472 | 74.9 | 69 | 120 | 641 | 520 | 806 | 66 | 746 | 435 | 1173 | 51 |
All measurements in millimetres unless marked (°) for angles.
