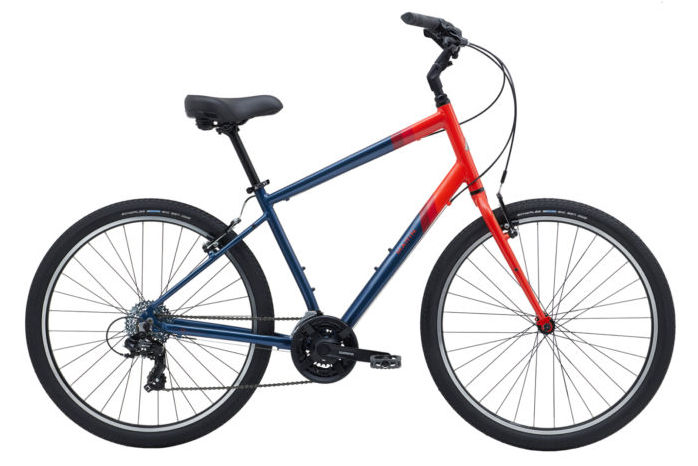

2018 Marin Stinson geometry
Full frame geometry for the 2018 Marin Stinson, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 609 | 309 | 66 | 68 | 195 | 580 | 330 | 646 | 65 | 490 | 1061 | 40 |
| S | 627 | 311 | 66 | 68.5 | 210 | 590 | 382 | 691 | 65 | 490 | 1061 | 40 |
| M | 645 | 318 | 66 | 68.5 | 230 | 605 | 432 | 732 | 65 | 490 | 1075 | 40 |
| L | 659 | 326 | 66 | 68.5 | 245 | 620 | 483 | 772 | 65 | 490 | 1089 | 40 |
| XL | 673 | 335 | 66 | 68.5 | 260 | 635 | 503 | 790 | 65 | 490 | 1104 | 40 |
| XXL | 692 | 342 | 66 | 68.5 | 280 | 650 | 559 | 833 | 65 | 490 | 1118 | 40 |
All measurements in millimetres unless marked (°) for angles.
