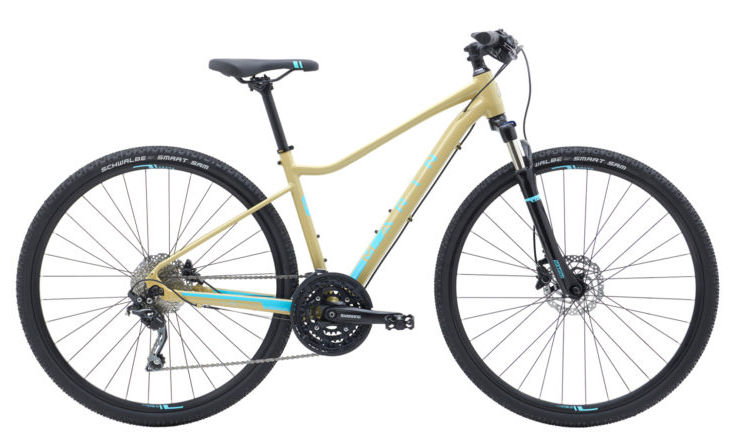

2018 Marin San Anselmo geometry
Full frame geometry for the 2018 Marin San Anselmo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 382 | 73.5 | 70.5 | 100 | 557 | 381 | 624 | 60 | 445 | 1054 | 41 |
| M | 598 | 378 | 73 | 70.5 | 110 | 561 | 432 | 670 | 60 | 445 | 1053 | 41 |
| L | 608 | 384 | 73 | 70.5 | 120 | 570 | 483 | 715 | 60 | 445 | 1063 | 41 |
| XL | 622 | 400 | 73 | 70.5 | 135 | 590 | 521 | 748 | 60 | 445 | 1083 | 41 |
All measurements in millimetres unless marked (°) for angles.
